Product description

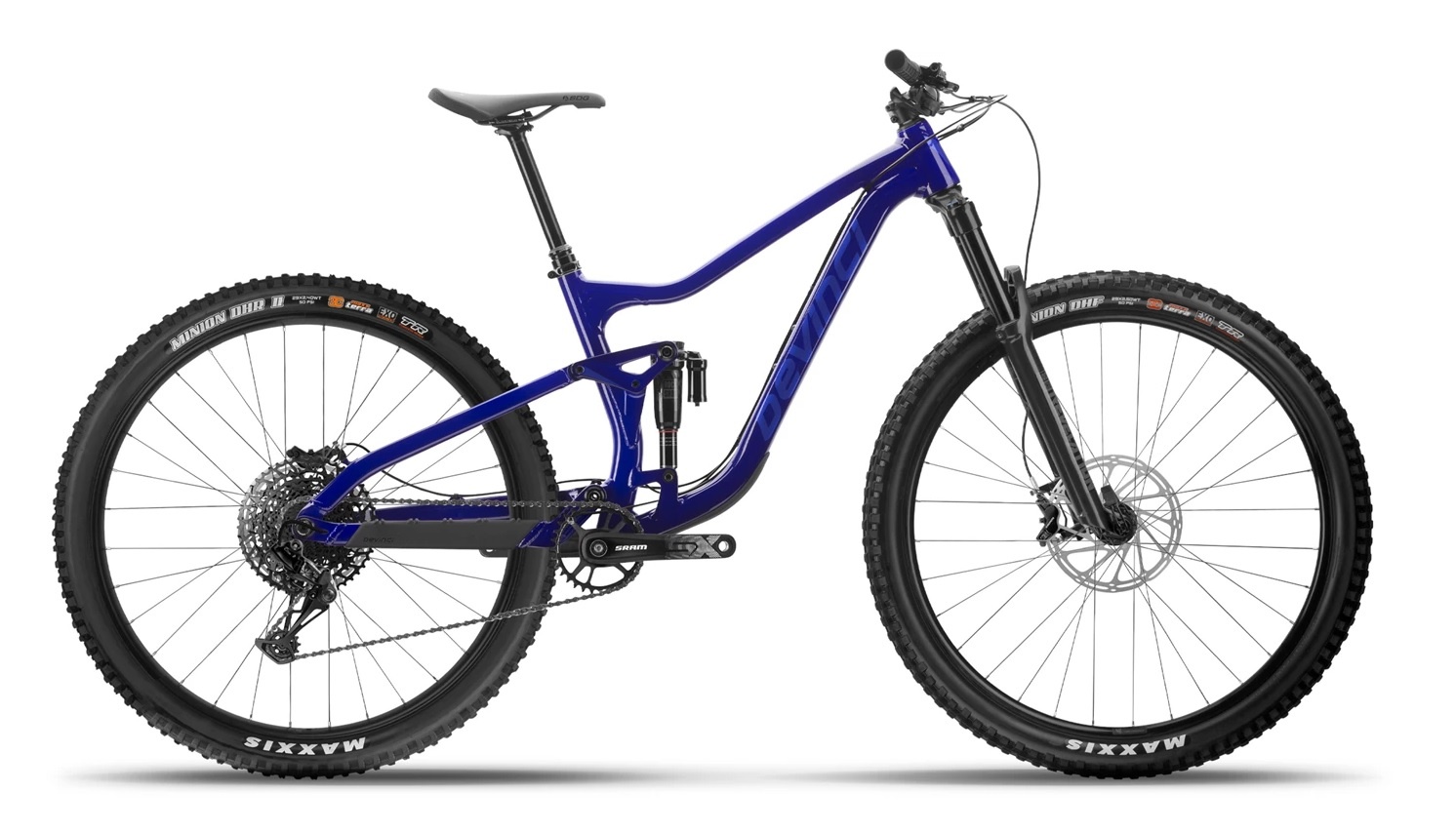

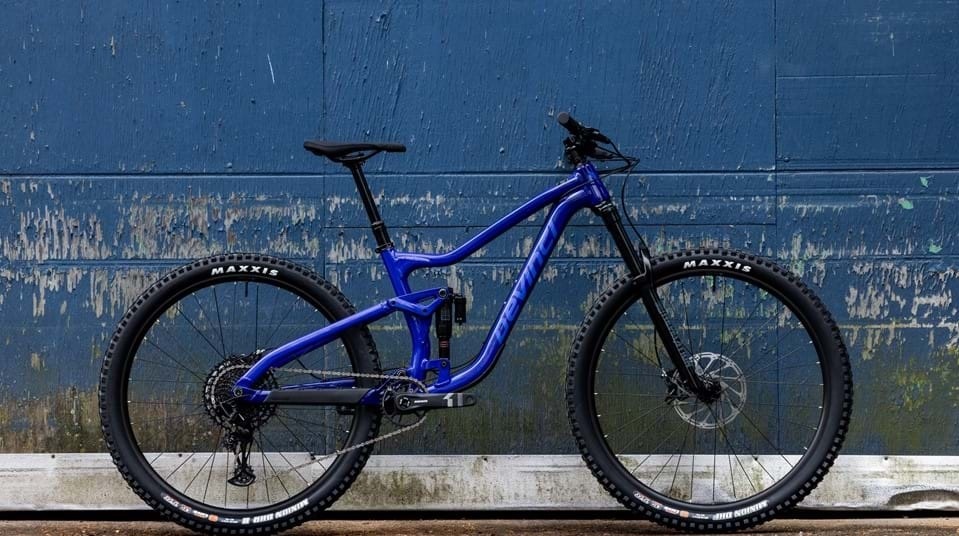

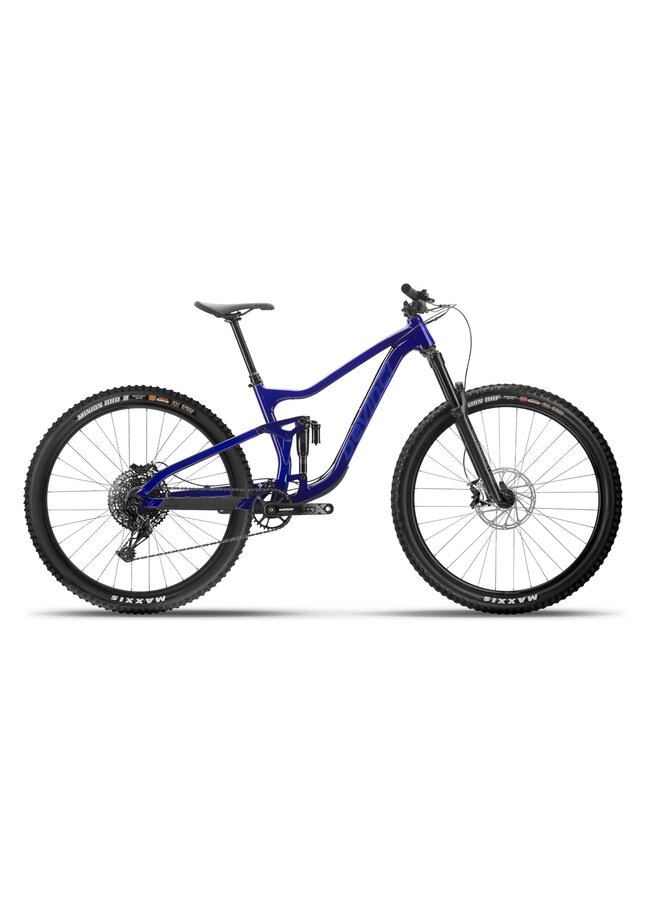

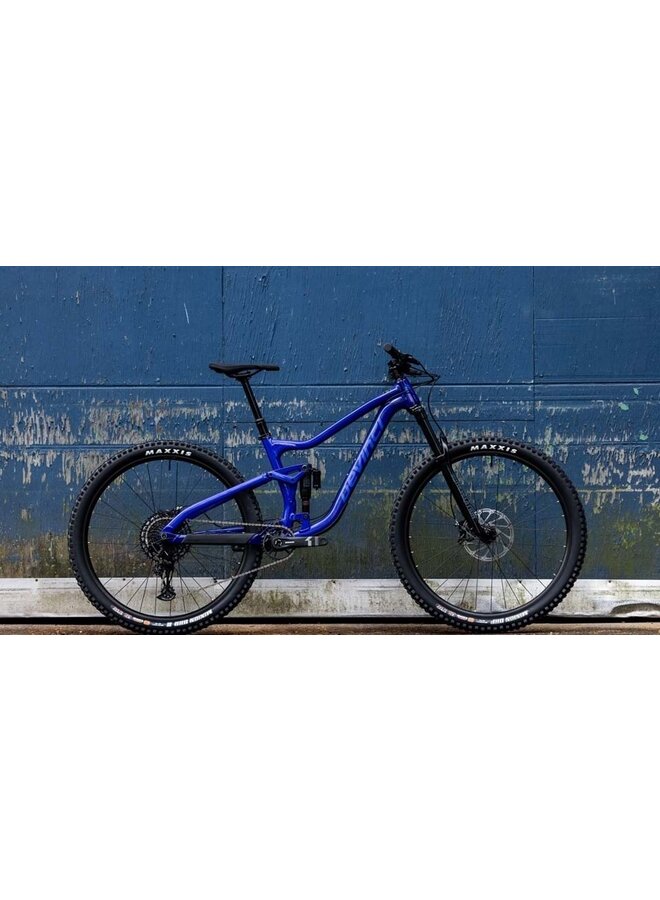

One bike, zero excuses. The Troy is a quiver killer. In its fourth-generation, the 140mm travel frame gets a svelter rear-end with improved clearance and ample room for up to 2.6″ tires. It also has stouter, double-row linkage bearings and refined geometry with size-specific chainstay lengths and longer reaches on all sizes—results of serious testing around the globe. If you’re looking for a trusty rig to take on everything your skills can handle, and maybe some stuff they can’t yet, the Troy is your bike.

FRAME Aluminum Optimum G04 140mm
HEADSET FSA Orbit | 1.5 | Zero Stack
SEAT CLAMP Alloy CNC | 38.6mm

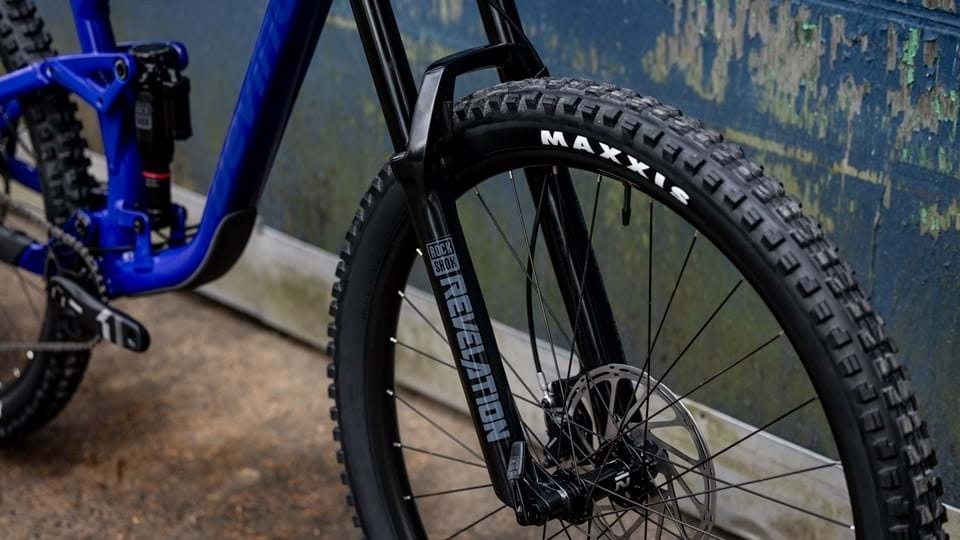

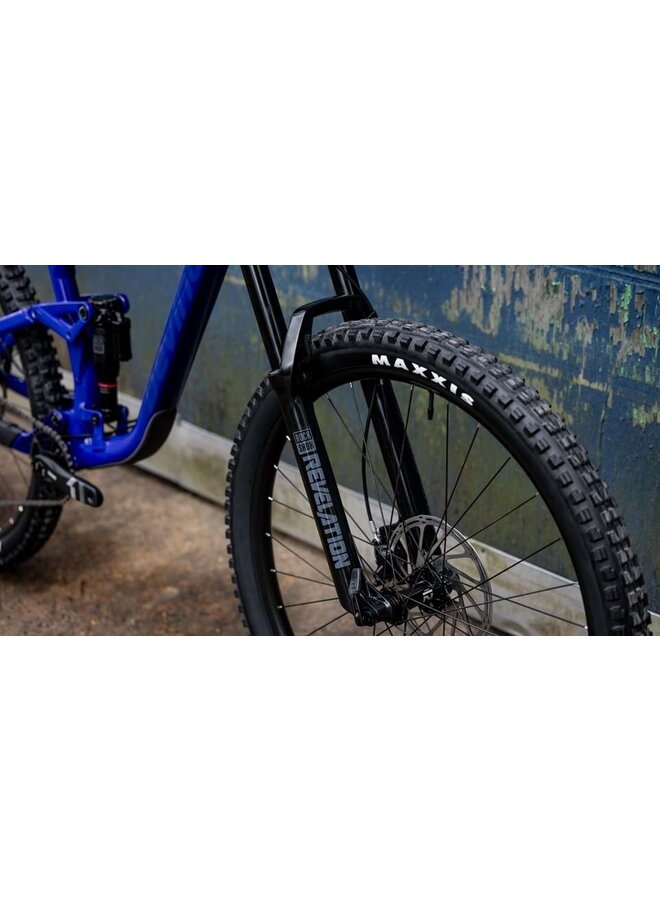

SUSPENSION FORK RockShox Revelation RC Debonair 150 | 1T | 42 Offset

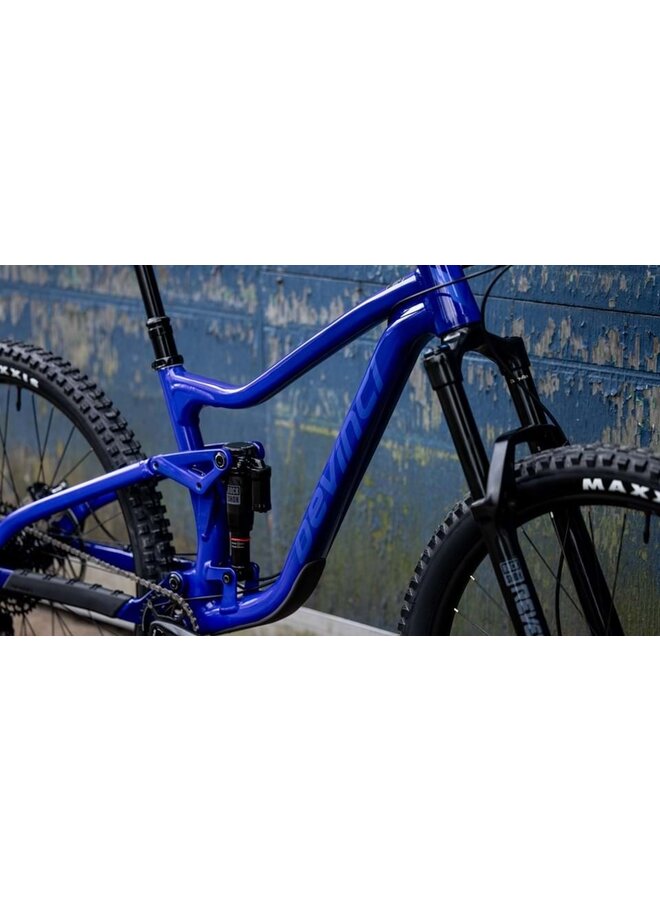

REAR SHOCK RockShox SuperDeluxe Select R Db. Trunnion | 2T |185x52.5
HANDLEBAR V2 Pro | B:35mm | R:15mm | W:780mm
STEM V2 Pro | B:35mm | L:40mm | 0°
SADDLE SDG FLY MTN

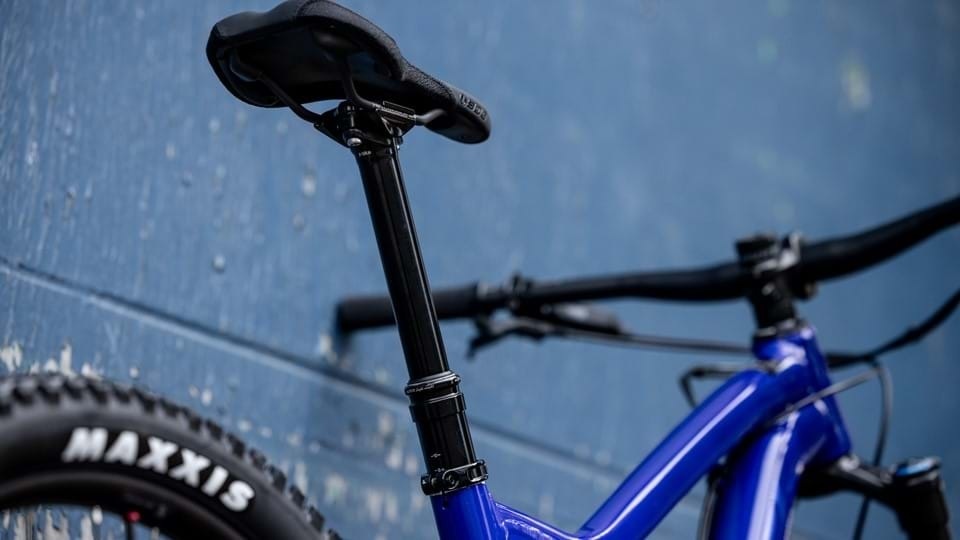

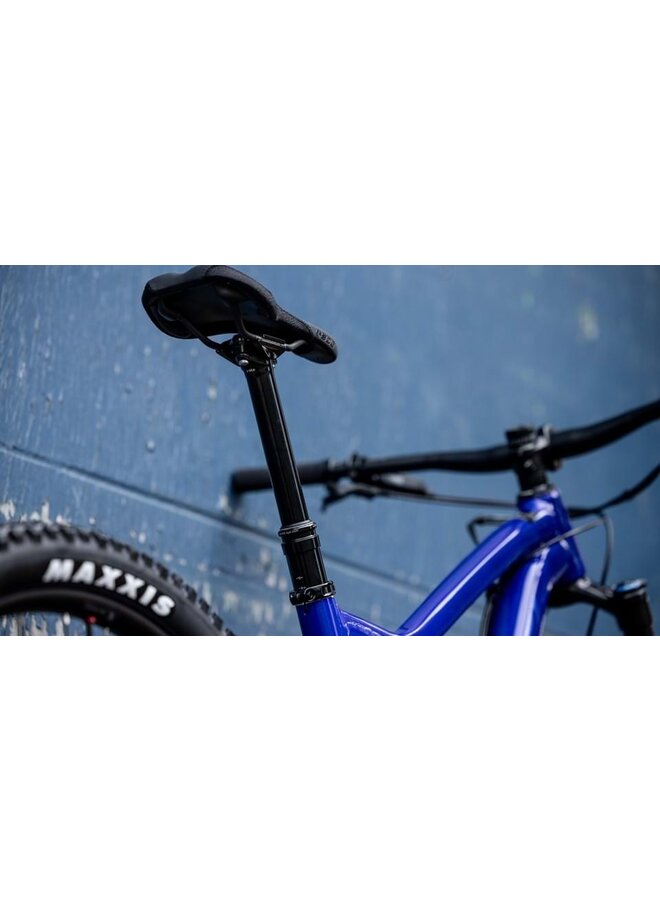

SEATPOST TranzX | 34.9mm | 1x Lever
GRIPS Devinci Performance | w/lock-on
FRONT BRAKE SRAM Guide T
REAR BRAKE SRAM Guide T
ROTORS SRAM Centerline | 200mm
REAR DERAILLEUR SRAM NX Eagle | 12s
REAR SHIFTER SRAM SX Eagle | 12s
CRANKSET Sram | X1 1000 Eagle | DUB | 32T | SuperBoost 157
BOTTOM BRACKET SRAM DUB | BSA | 73mm
CASSETTE SRAM PG1210-12s 11-50T
CHAIN SRAM SX Eagle | 12s
FRONT RIM V2 Comp 29 | 29mm inner | TR
FRONT HUB Novatec D791SB-B15 | 6bolts | TA 15x110mm
REAR HUB Novatec DH92SB-SH TA 12x157 SH
REAR RIM V2 Comp 29 | 29mm inner | TR
SPOKES Sapim Stainless 14G w/Nylok
FRONT TIRE Maxxis Minion DHF | 29x2.5WT | 3C | Exo | TR
REAR TIRE Maxxis Minion DHRII | 29x2.4wt | 3C EXO TR

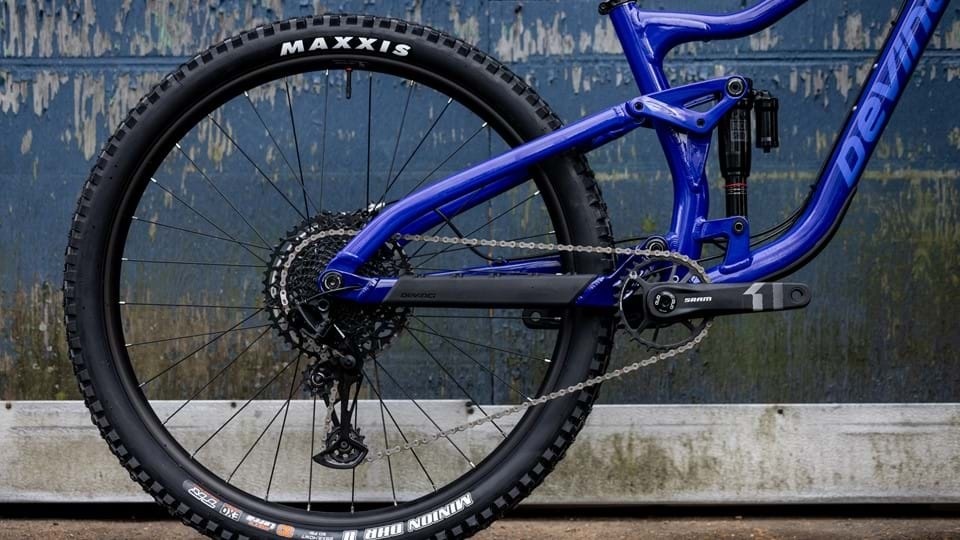

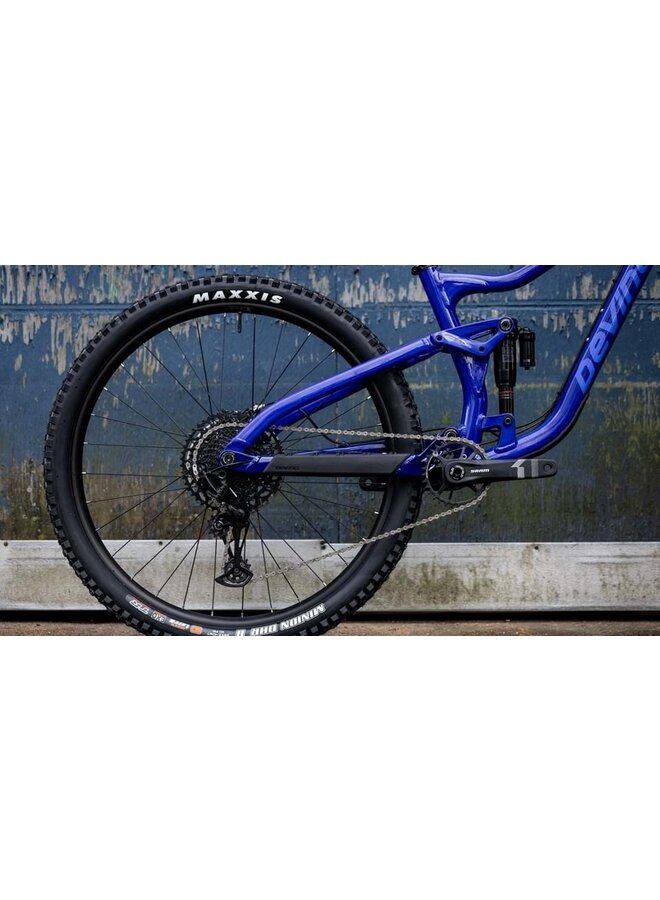

Rider optimized chainstay length

Adaptable chainstay lengths on large/XL bikes for a fully balanced feel on the trail, while rider size-appropriate front triangle enhances overall stability and handling.

435mm on S - M
440mm on L
445mm on XL

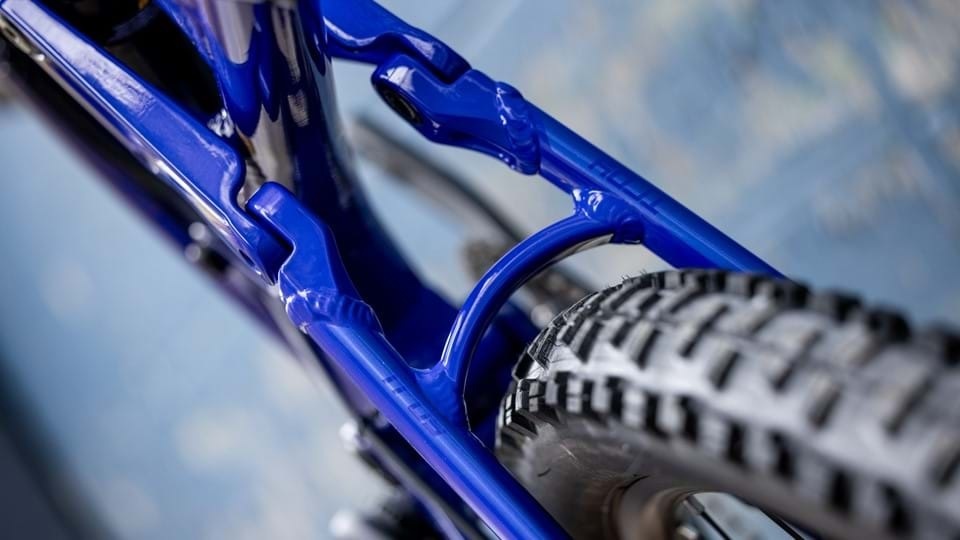

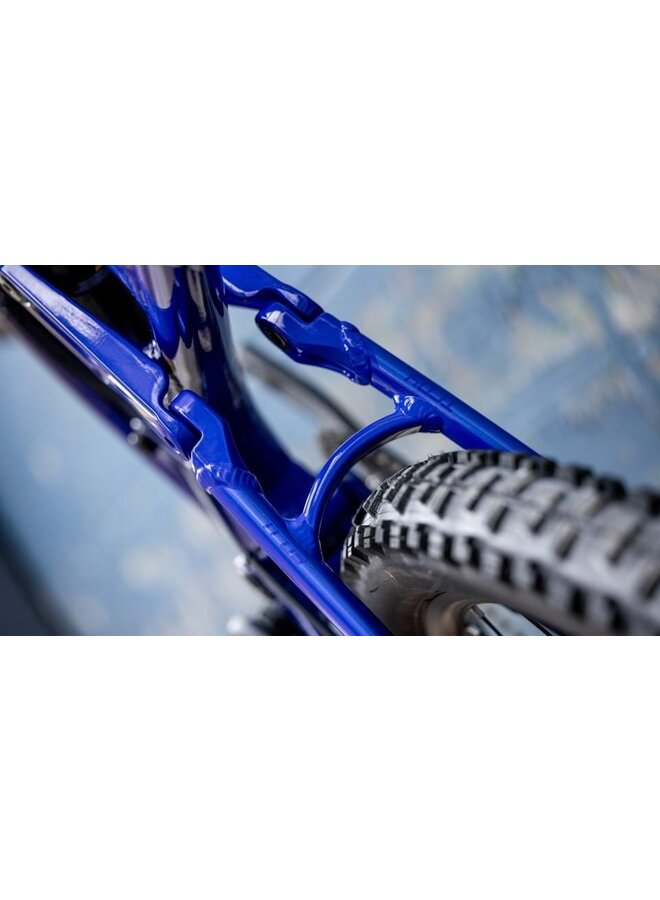

29 x 2.6'' Maximum tire clearance

Super Boost rear spacing provides massive tire clearance at 29x2.6 for capable mud ejection plus the traction you want when trails turn slick.

Cable holder / shock washer combo

User-friendly cable holder doubles as a lower shock washer for ultra-easy reassembly.

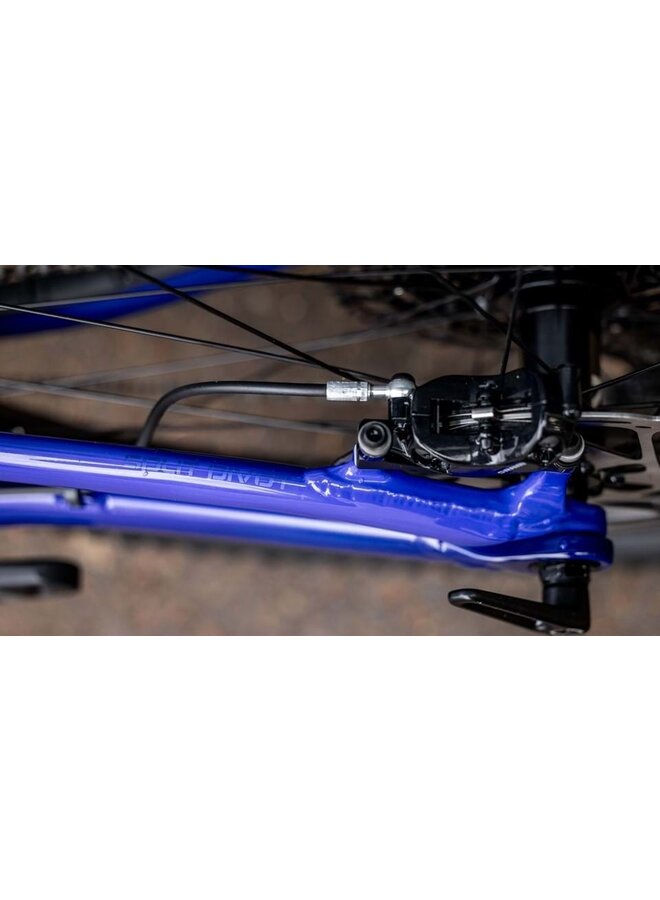

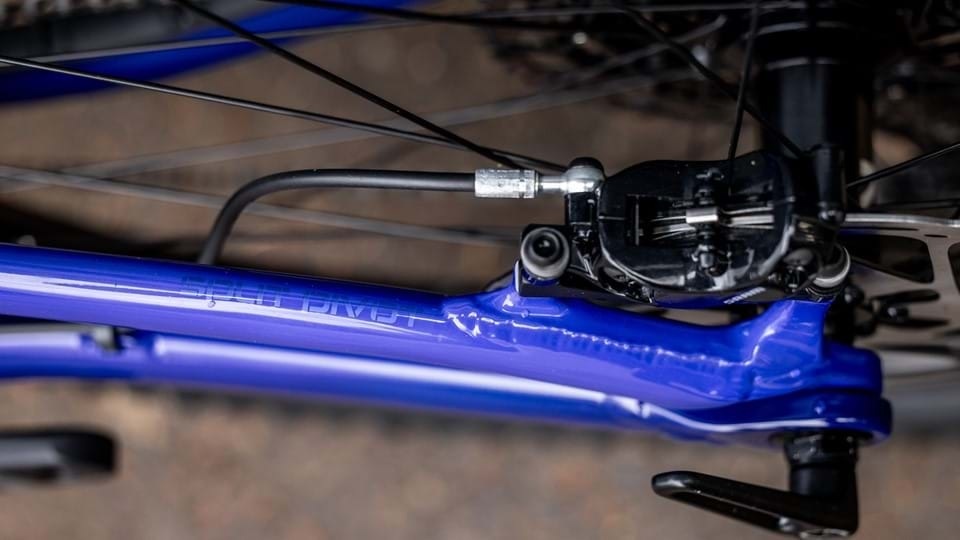

Rear pivot brake cable clip

Rear pivot brake cable clip complements streamlined architecture and shuns frame rubbing.

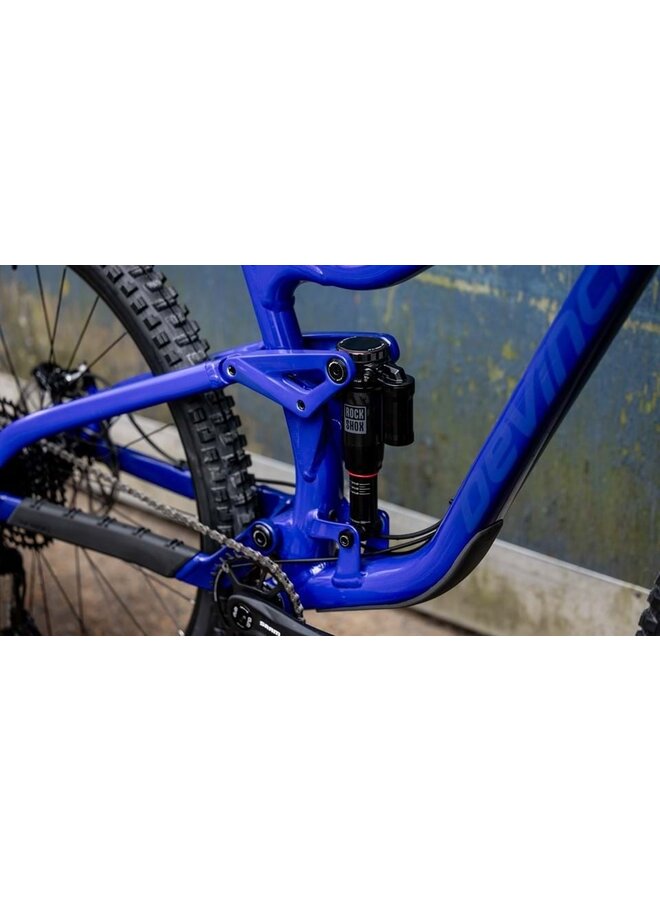

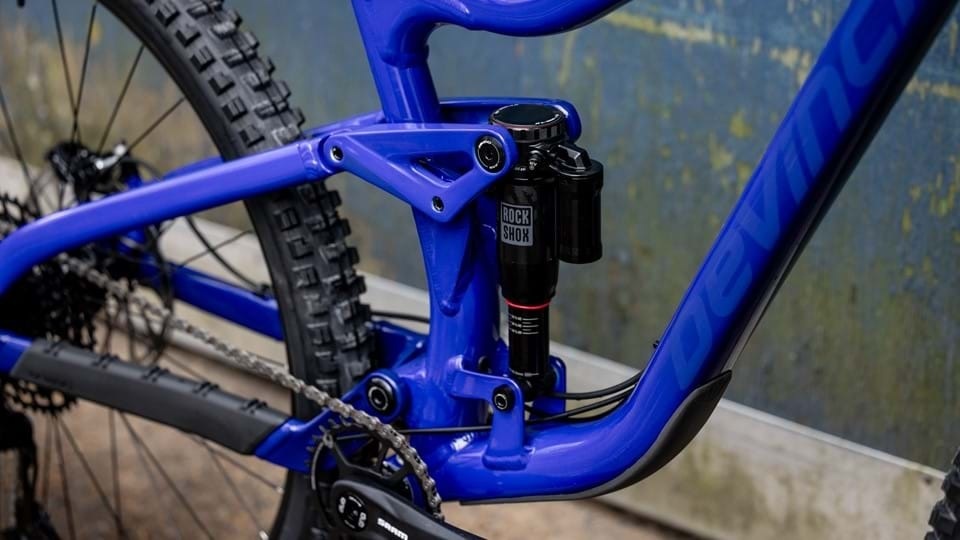

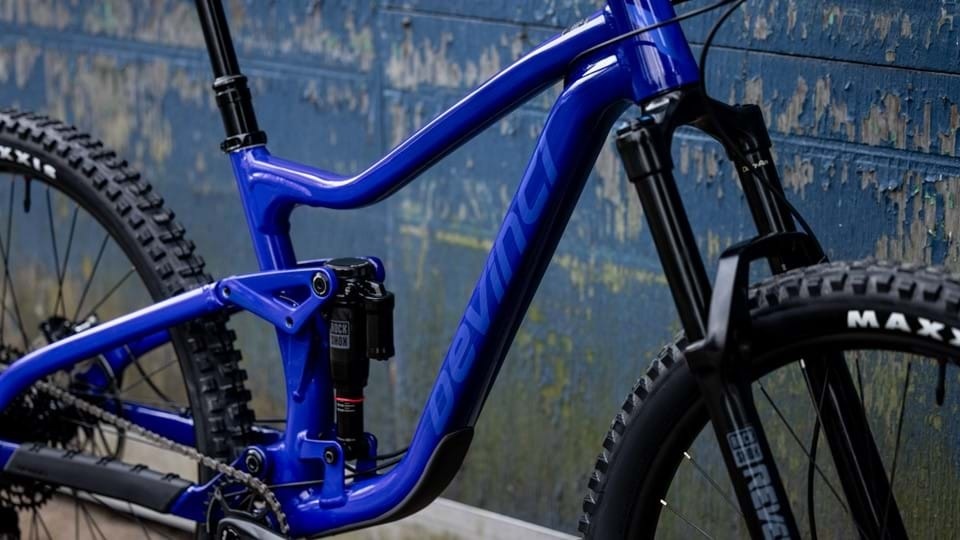

Double row linkage bearings

Double-row, double-lip sealed linkage bearings for precision movement and superior longevity.

2 bolts ISCG mount

Get-gnarly chain guide fortified for on-trail use and abuse.

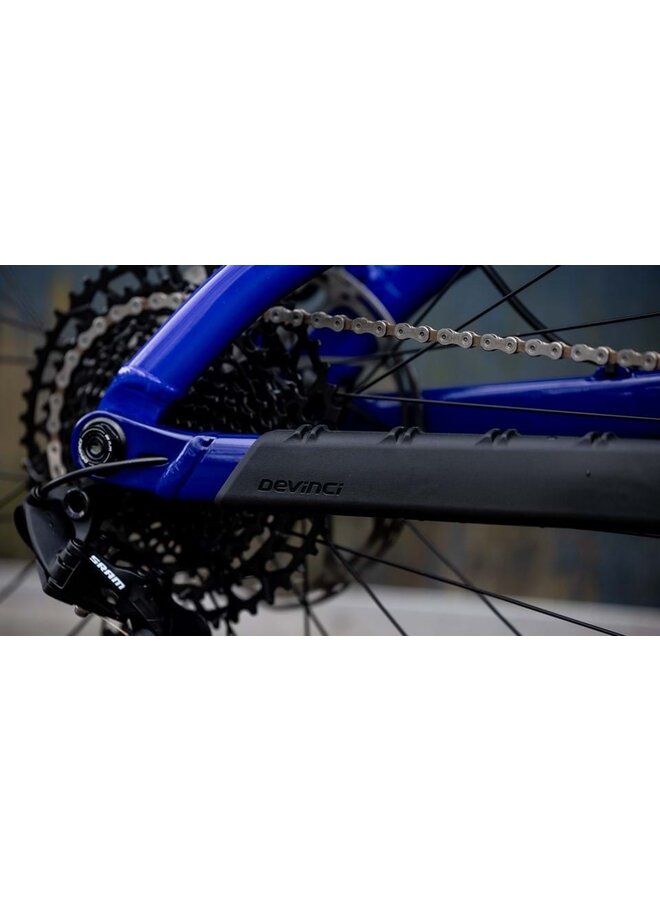

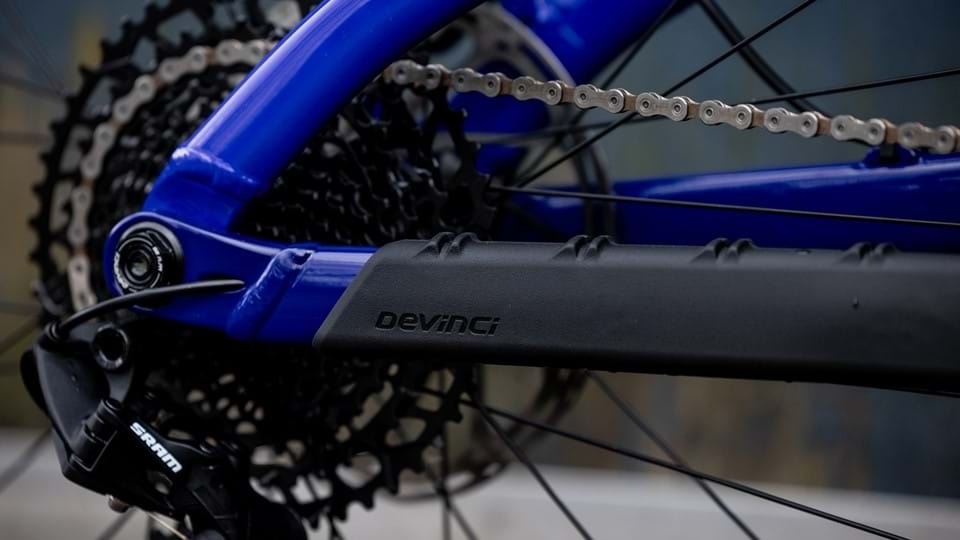

Molded Polyurethane protector

High-density rock guard and chain stay protector enhance durability for the rugged ride ahead.

Updated Geometry

Modern trail bike geometry featuring a 15mm longer reach and 1 degree slacker head angle for confidently tackling technical sections, while steeper seat tube angle helps you motor up the climbs.

Geo adjust Flip Chip

Switch between Hi/Lo mode to customize ride characteristics. The flip chip is conveniently located at the base of the shock mount with less moving parts, meaning it's easier to use, especially if you want to conduct some on-trail experiments.
